Whitco

Whitco Bell Series Knob Door Furniture Lockset

The Bell knob series door furniture lockset is designed for use with hinged timber doors to suit entrance, passage, privacy (bathroom) and dummy (wardrobe) functions.

Features of the Whitco Bell Series Knob Door Furniture Lockset

  • Tubular lockset with steel chassis
  • Visible screw fix mounting
  • Suits either left or right handed hinged doors
  • Latch is adjustable from 60 mm to 70 mm backset
  • D strike has anti rattle tab
  • Easy to install with mounting instructions in the pack
  • Suits door thicknesses from 32 mm to 45 mm

  • Stainless Steel 04

  • Polished Stainless Steel 27
  • Keying
    • Entrance sets are available as random keyed alike by 4
    • Keyway is standard C4
    • Construction Keying Available

    Dimensions

  • Whitco Key in Knob and Key in Lever Catalogue(PDF, 505 KB)
  • ItemPart numberBarcode
    TRADE PACK
    Dummy - Satin Stainless SteelW7149049311847044524
    Entrance - Polished Stainless SteelW7141279311847782396
    Entrance - Polished Stainless Steel 5RPW7141275RP9311847031562

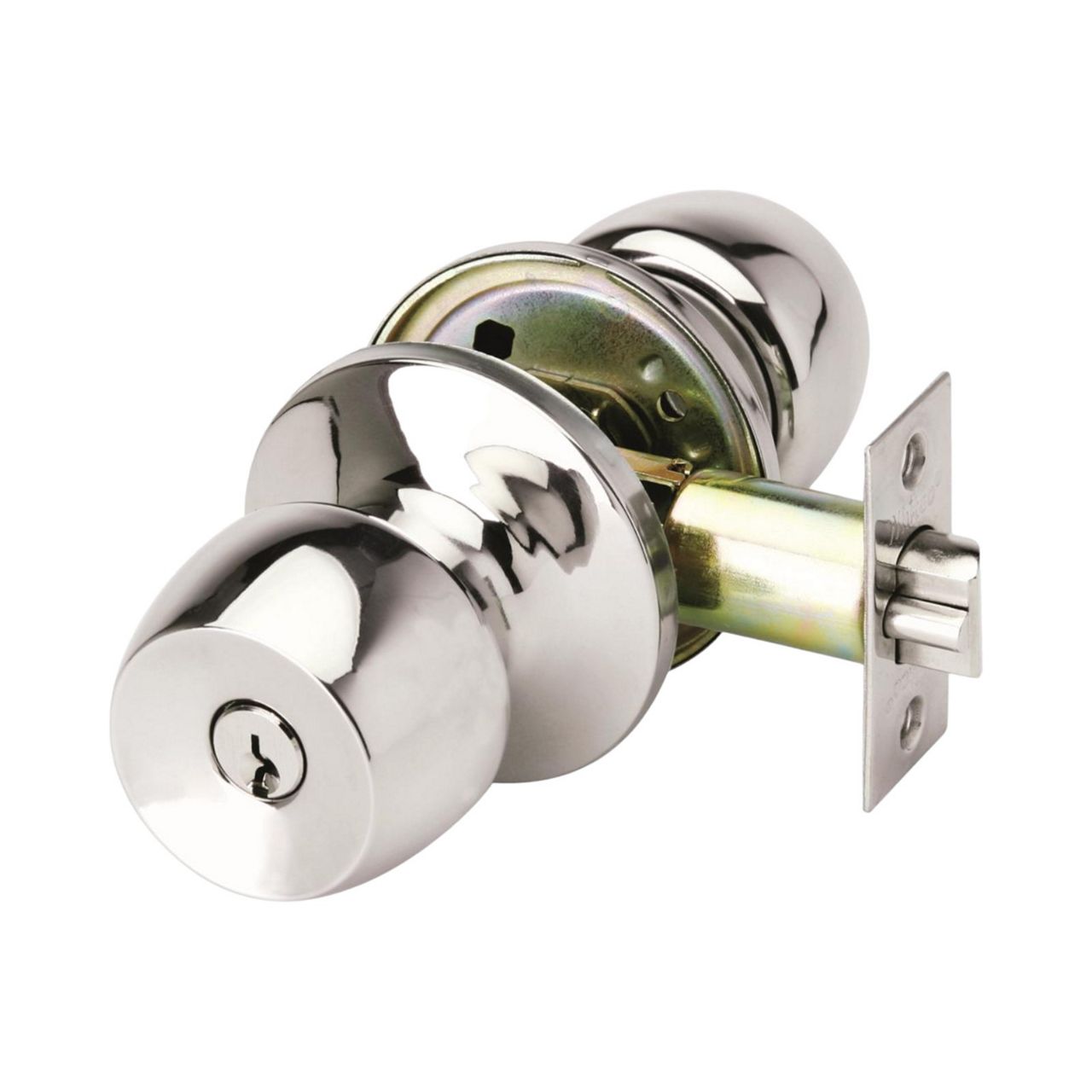

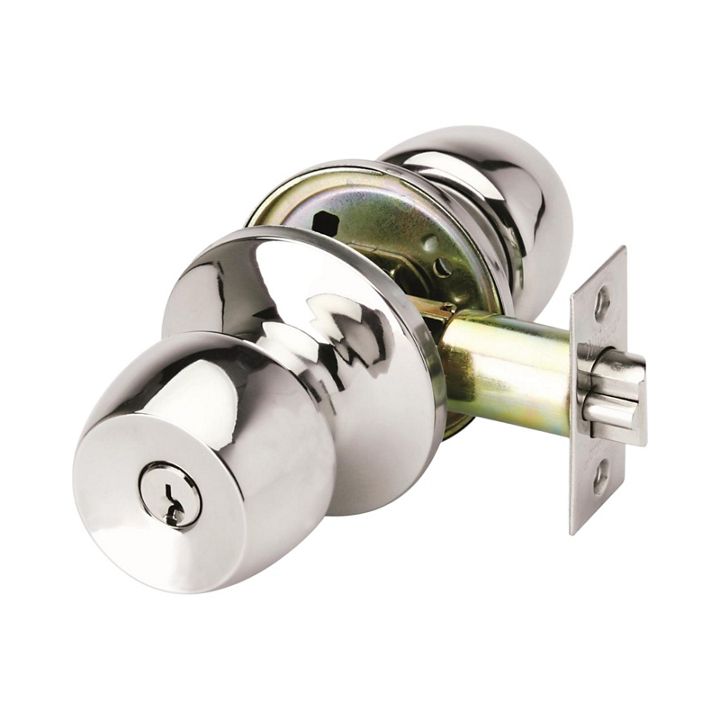

    Entrance - Satin Stainless SteelW7141049311847780316
    5 Pin Keyed Alike - Satin Stainless SteelW7141045KA9311847856110
    5 Pin Keyed Alike - Polished Stainless SteelW7141275KA9311847856165
    5 Pin Project Keyed - Satin Stainless SteelW7141045PK9311847856127
    5 Pin Project Keyed - Polished Stainless SteelW7141275PK9311847856172
    5 Pin Restricted Profile - Satin Stainless SteelW7141045RP9311847856134
    No Cylinder - Satin Stainless SteelW714104NOCYL9311847780125
    No Cylinder - Polished Stainless SteelW714127NOCYL9311847782402

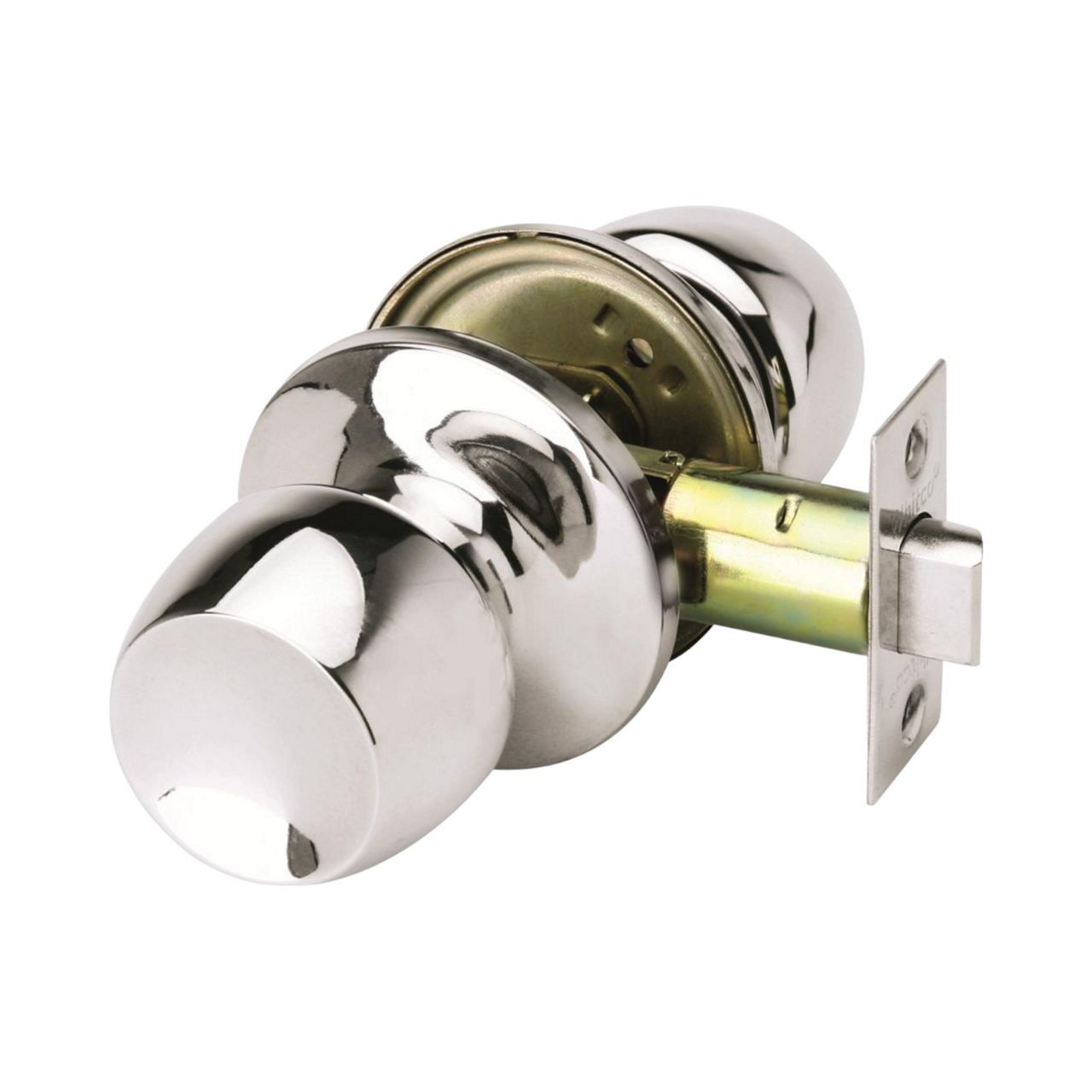

    Passage - Satin Stainless SteelW7142049311847780033
    Passage - Polished Stainless SteelW7142279311847782365

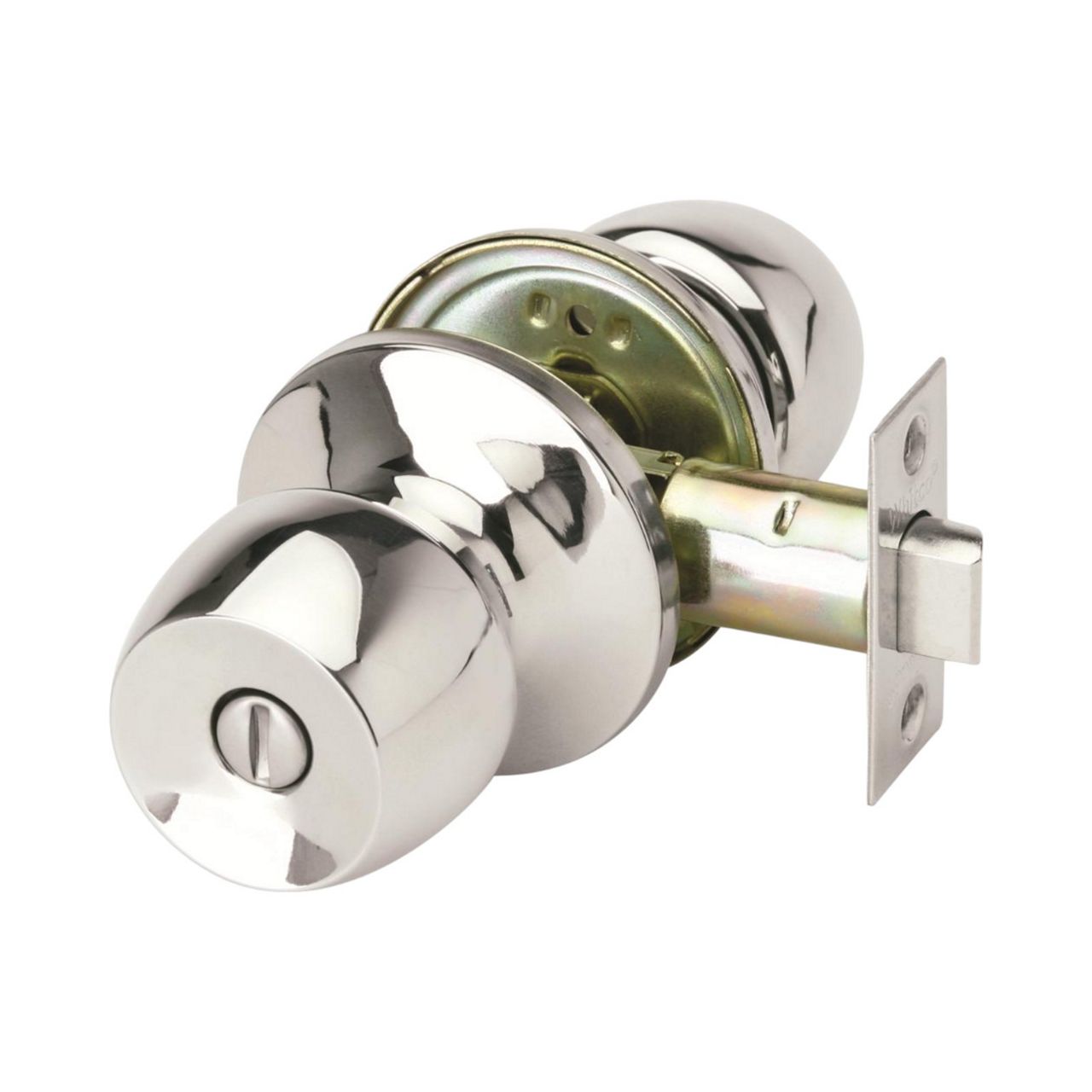

    Privacy - Satin Stainless SteelW7143049311847779358
    Privacy - Polished Stainless SteelW7143279311847782372
