Whitco Bow Series Lever Door Furniture Lockset

The Bow series lever furniture lockset is designed for use with hinged timber doors to suit entrance, passage, privacy (bathroom) and dummy (wardrobe) functions.

Features of the Bow Series Lever Door Furniture Lockset

  • Tubular lockset with steel chassis and diecast plated lever
  • Visible screw fix mounting
  • Suits either left or right handed hinged doors
  • Latch is adjustable from 60 mm to 70 mm backset
  • D strike has anti rattle tab
  • Easy to install with mounting instructions in the pack
  • Suits door thicknesses from 32 mm to 45 mm
  • Keying
    • Entrance sets are available as random keyed alike by 4
    • Keyway is standard C4
    • Construction Keying Available

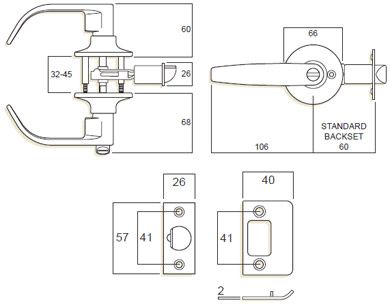

    Dimensions



  • Whitco Key in Knob and Key in Lever Catalogue(PDF, 505 KB)
  • ItemPart numberBarcode
    Dummy - Satin ChromeW7359059311847021143
    Dummy - Chrome PlateW7359089311847021150

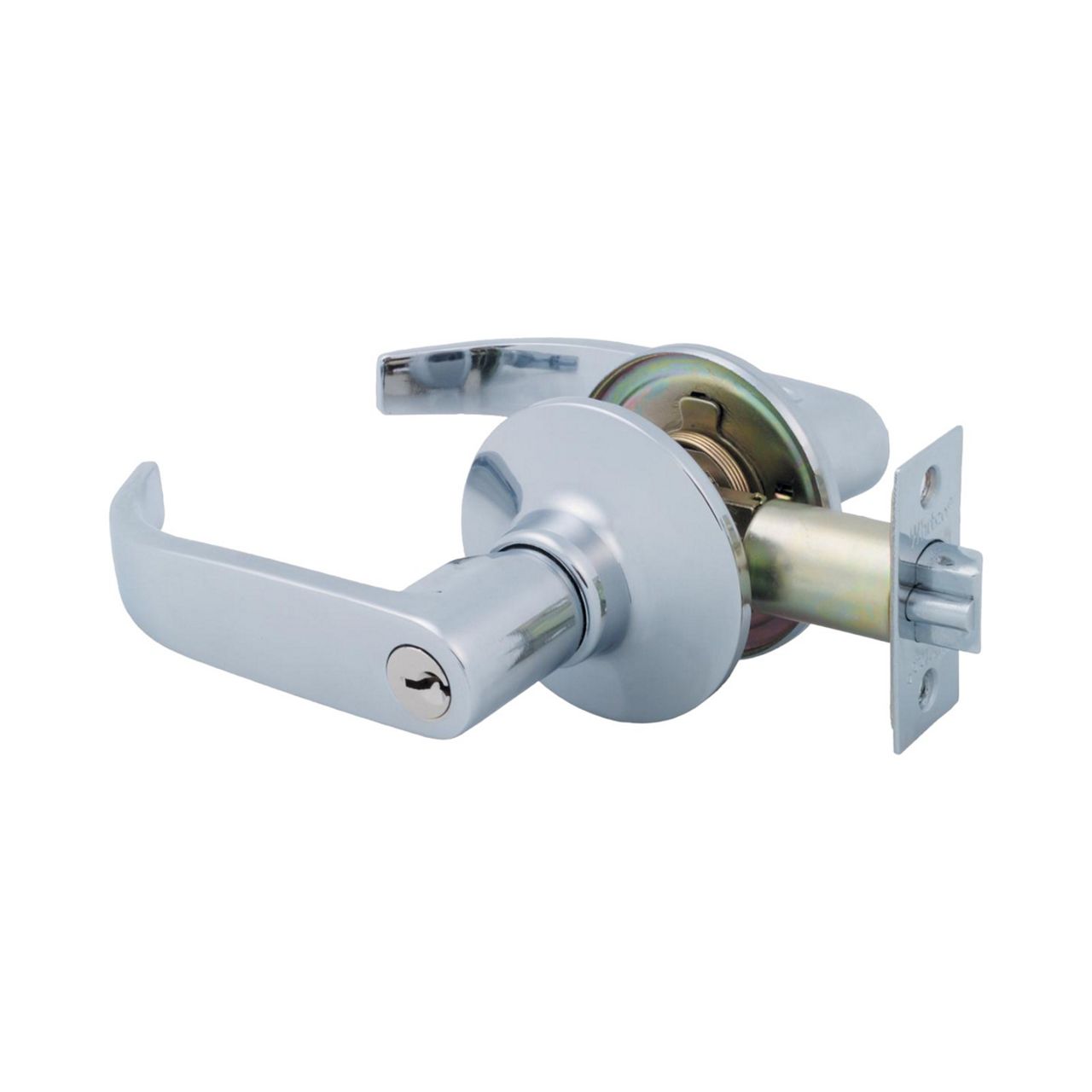

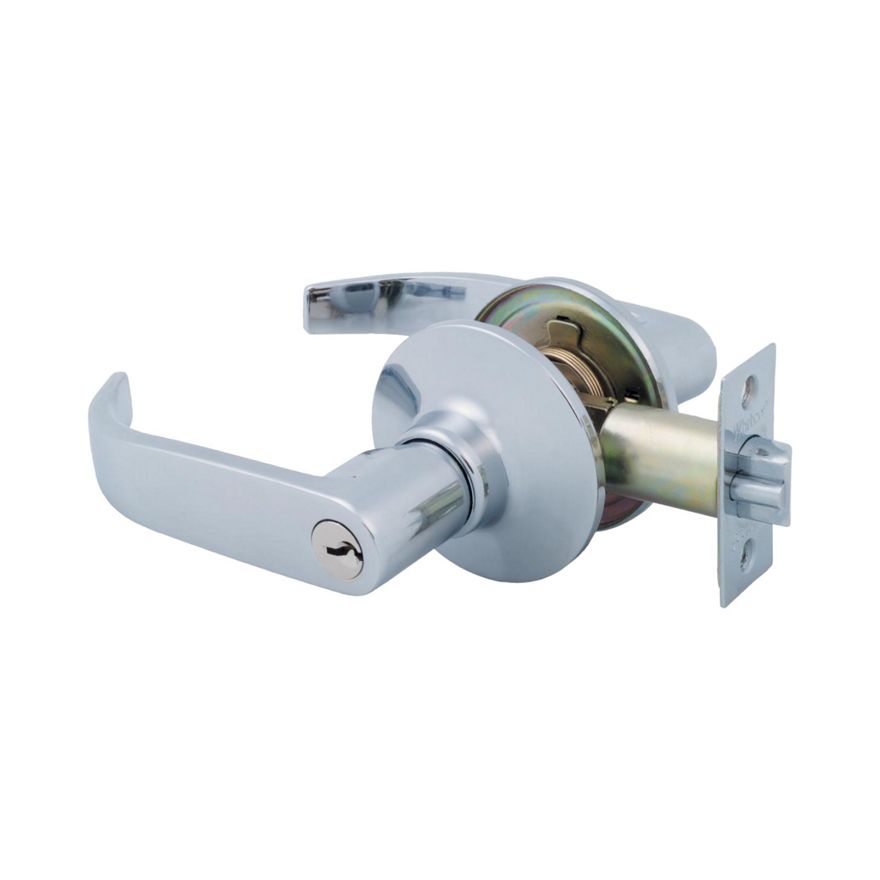

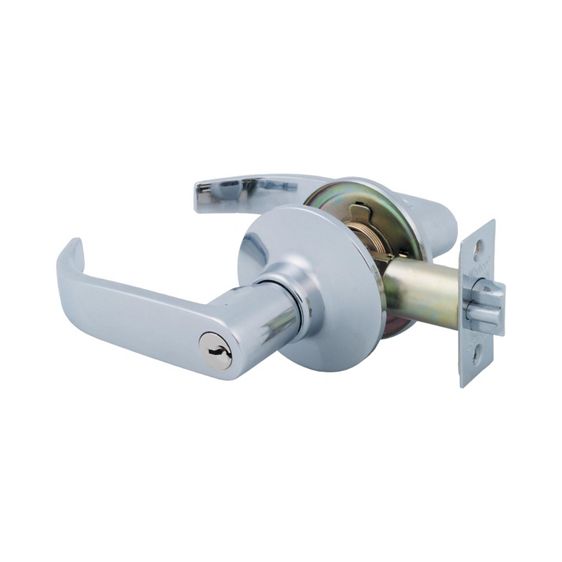

    Entrance - Satin ChromeW7351059311847780347
    Entrance - Chrome PlateW7351089311847780354
    5 Pin Keyed Alike - Satin ChromeW7351055KA9311847856615
    5 Pin Keyed Alike - Chrome PlateW7351085KA9311847856646
    5 Pin Project Keyed - Satin ChromeW7351055PK9311847856622
    5 Pin Project Keyed - Chrome PlateW7351085PK9311847856653
    5 Pin Restricted Profile - Satin ChromeW7351055RP9311847856639
    5 Pin Restricted Profile - Chrome PlateW7351085RP9311847856660
    No Cylinder - Satin ChromeW735105NOCYL9311847780156
    No Cylinder - Chrome PlateW735108NOCYL9311847780163

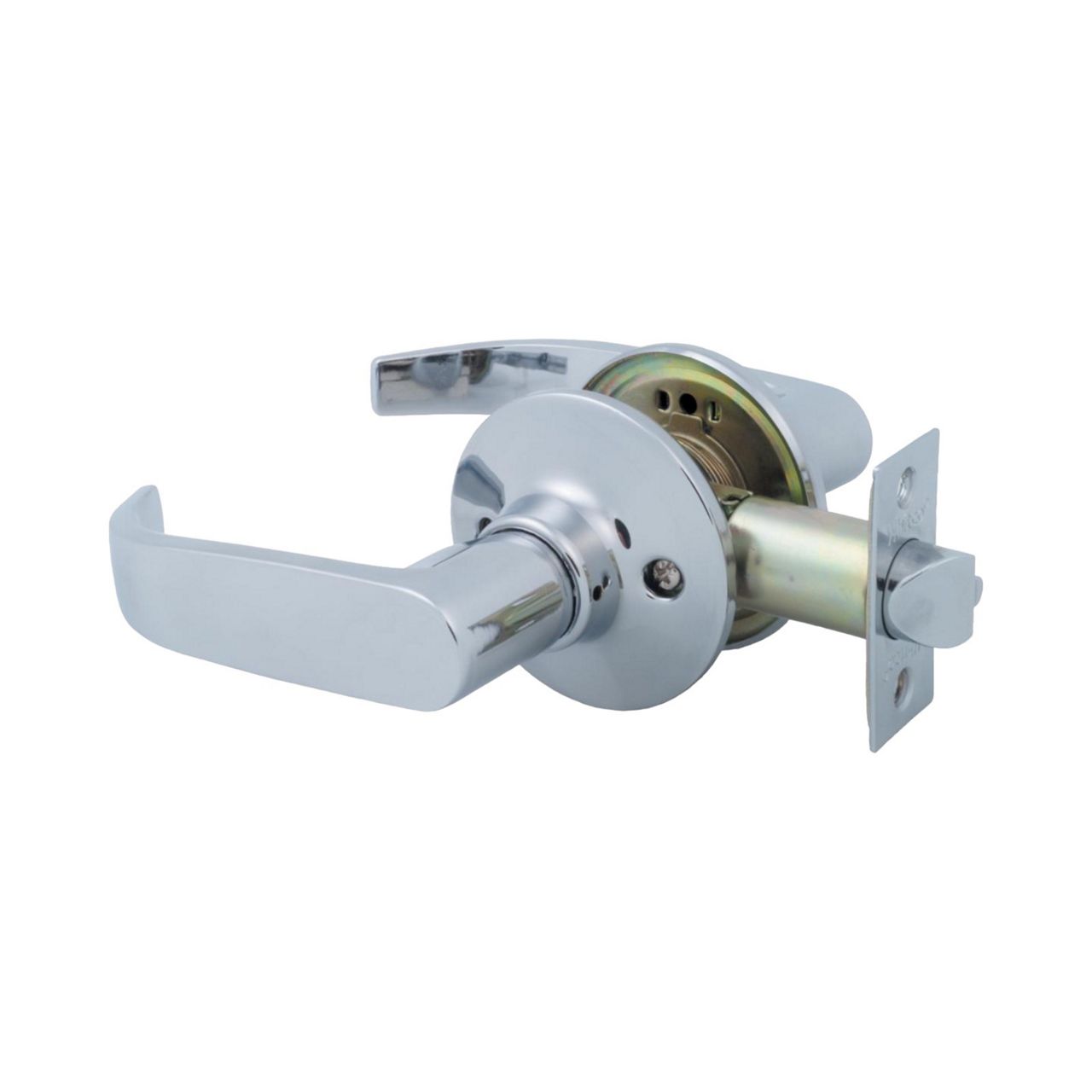

    Passage - Satin ChromeW7352059311847778955
    Passage - Chrome PlateW7352089311847778962
    Passage - Satin Chrome Drive In LatchW735205MH9311847904644
    Passage - Chrome Plate Drive In LatchW735208MH9311847904651
    Passage - Satin Chrome Less Latch and StrikeW735205LLS9311847904491
    Passage - Chrome Plate Less Latch and StrikeW735208LLS9311847904507

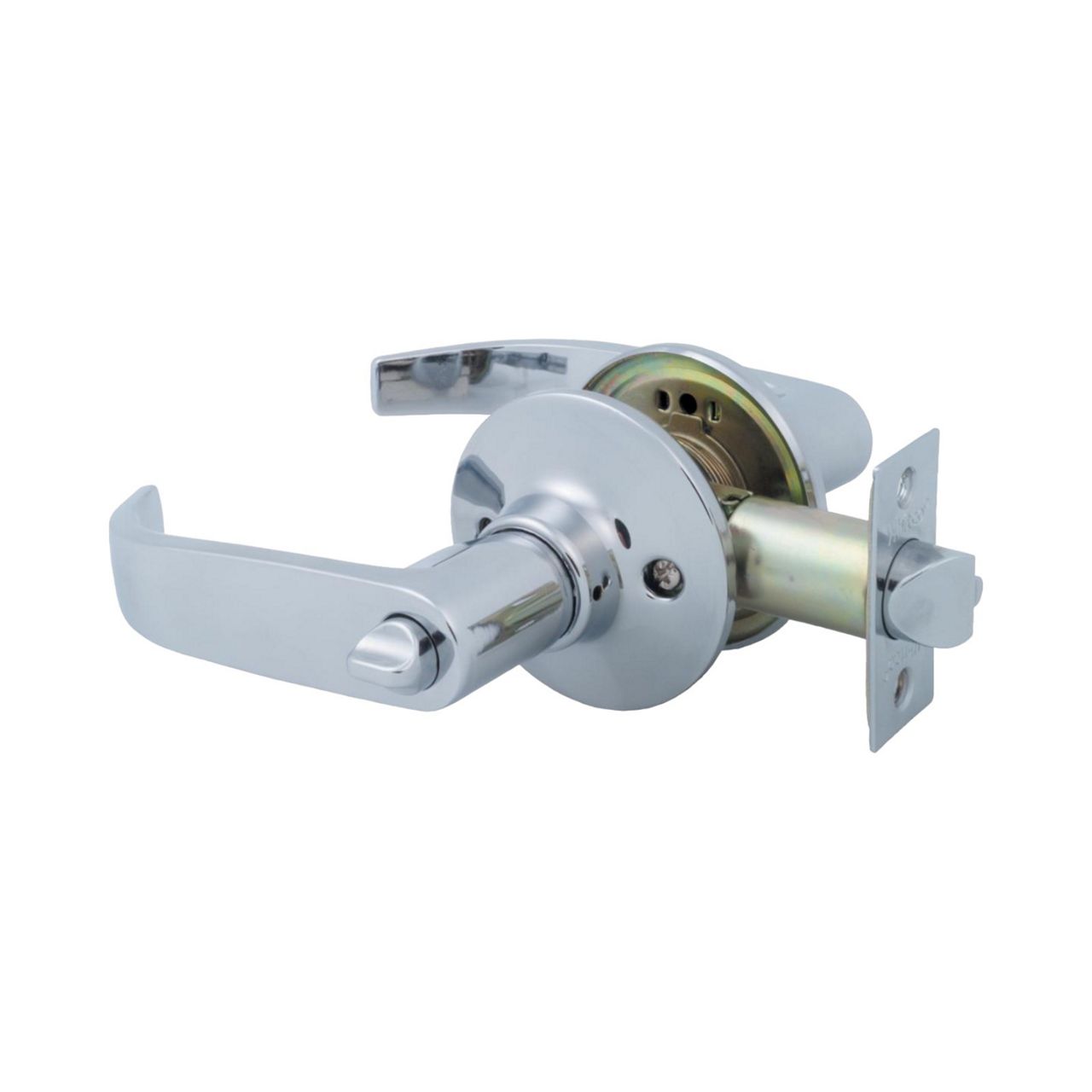

    Privacy - Satin ChromeW7353059311847778986
    Privacy - Chrome PlateW7353089311847778993
    Privacy - Satin Chrome Drive In LatchW735305MH9311847904675
    Privacy - Chrome Plate Drive In LatchW735308MH9311847904682
    Privacy - Chrome Plate Less Latch and StrikeW735308LLS9311847904521
