Whitco Sliding Screen Door Rollers

For use on Sliding Screen and Sliding Security Screen Doors.

Features of the Sliding Screen Door Rollers

  • 'Speed Fit' applicator lugs
  • Offset wheel function*
  • Fully adjustable under load
  • Spring Loaded
  • Large 11mm adjustment
  • Adjustable from both sides
  • Quick insert rim
  • Inner case will not dislodge
  • A + B identification for offset applications
  • Retrofits existing rollers
  • Suits both top and bottom rails

Available in Trade Pack Only.

  • Matt Black 17 (with white wheel)

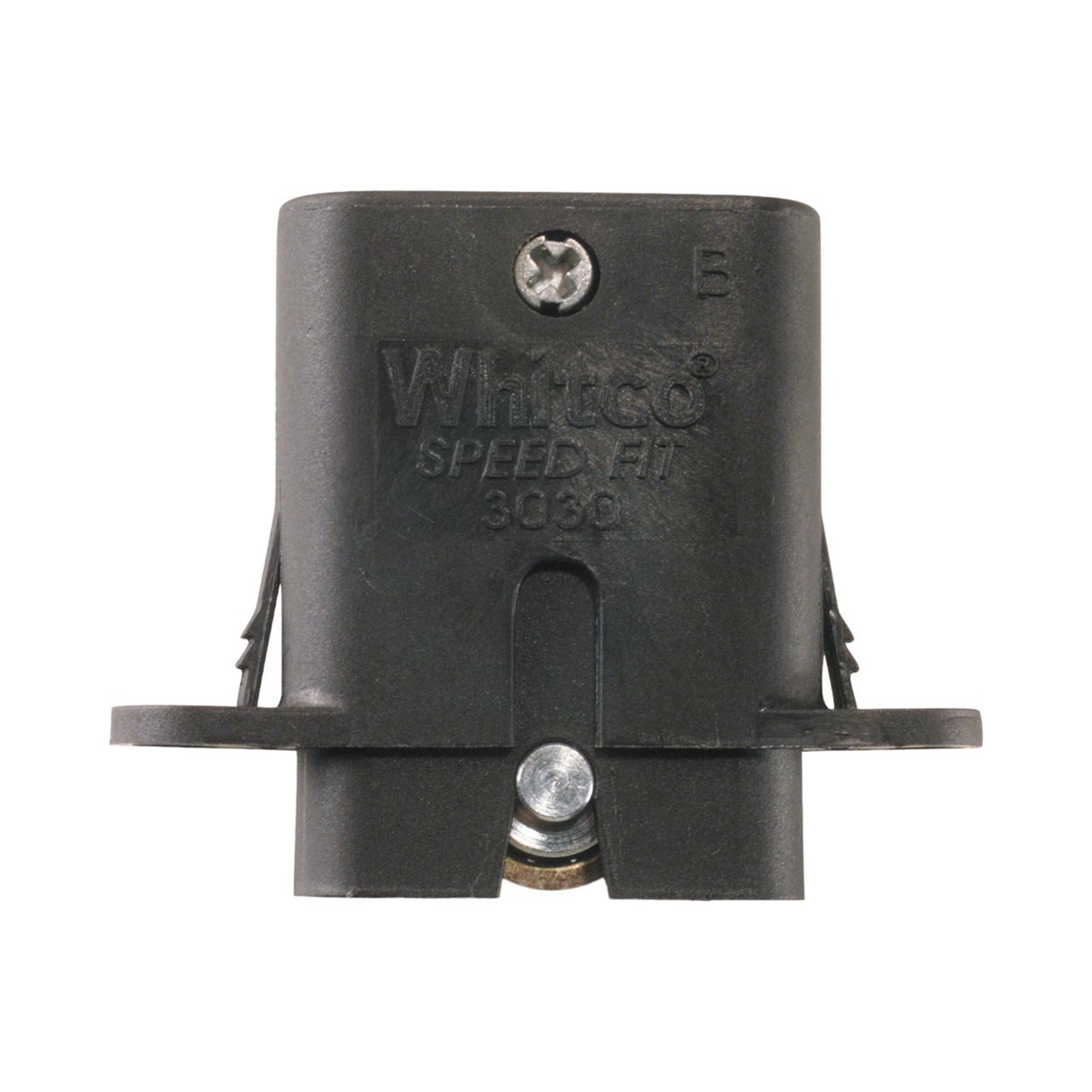

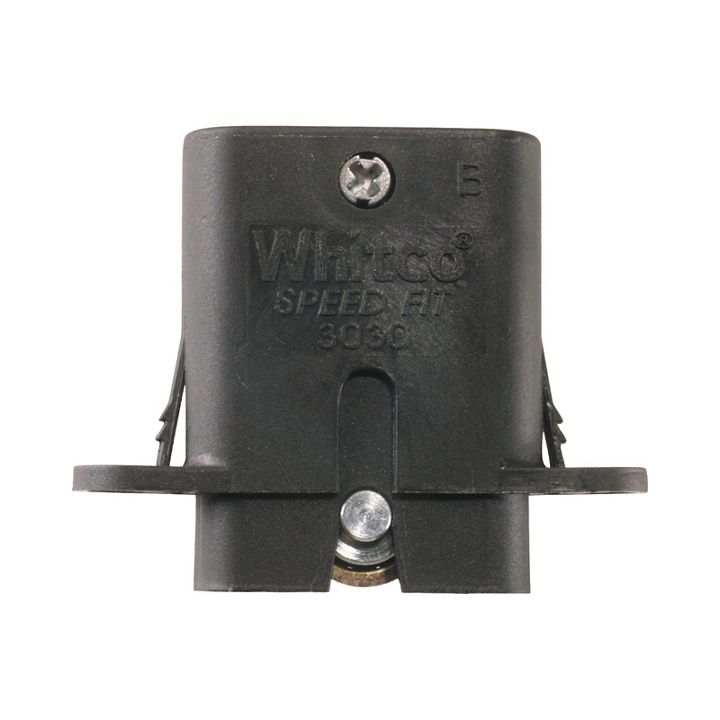

Sliding Screen Door Rollers

8a9b5-sliding-screen-door-rollers8a9b5-sliding-screen-door-rollers

  • Dimensions



    *Offset Wheel Function
    To offset the door in order to reduce scraping or clashing with another door panel simply remove only the roller from the unit, rotate it 180 degrees, then replace it back into the unit. This will offset the panel or door 1mm.

    Note. If the offset is incorrectly placed remove the entire unit, rotate it 180 degrees and then replace the entire unit.

  • Whitco Security Screen Door Hardware Catalogue(PDF, 1 MB)
  • ItemPart numberBarcode
    TRADE PACK
    Sliding Screen Door Roller - Speed Fit, Spring Loaded, BlackW8626009311847778542
