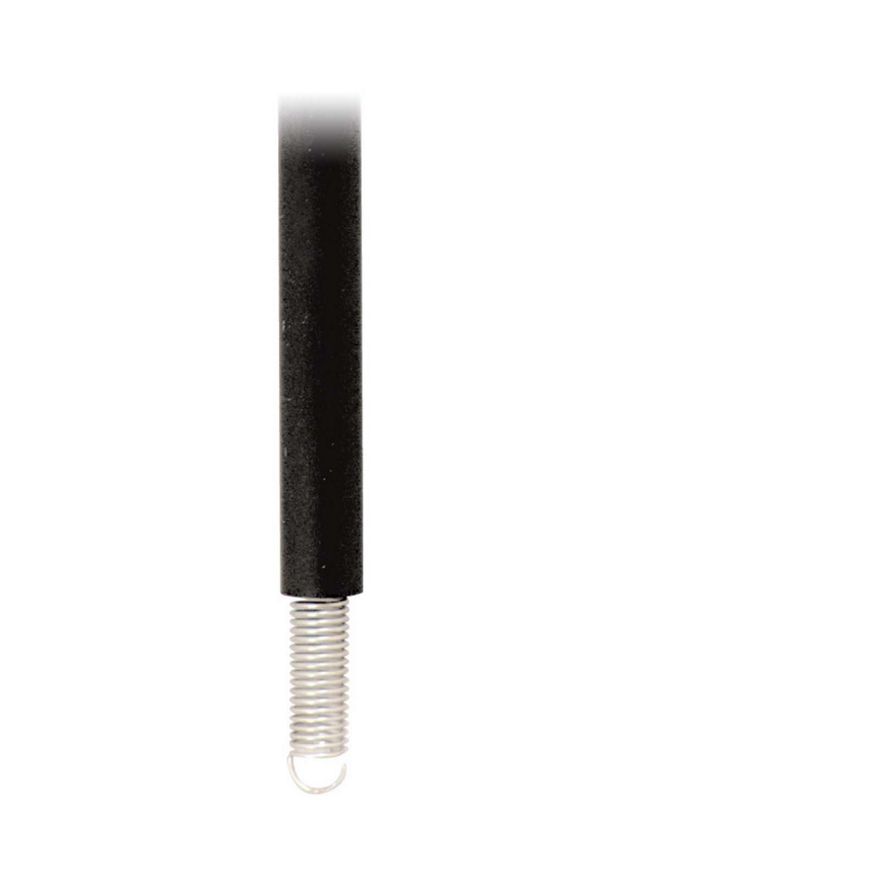

Whitco Spring Sash Window Balances
Narrow, tension spring balance and friction foot system for aluminum double hung windows. Maximum sash weight of 22Kg.
Features of the Spring Sash Window Balances
- Five weight ranges cater for sash weights of up to 22Kg
- Wide range of lengths suit sashes from 350mm to 1100mm high
- Oil tempered galvanised carbon steel tension spring
- High quality Tension foot with stainless steel bow spring and adjustable polymer friction pads.
- Tough ABS black polymer outer casing
- Wide range of lengths and weights available
- Range of adjustable tension feet to suit various sections
- Shock absorbing stops available
- Australian Made
Spring Sash Window Balances
Available in Trade Pack only.
Standard Packs, Finishes and Ratings
Range End Cap Colour Sash Weight Rating 51 Range Green Cap Up to 6.0 Kg 61 Range Grey Cap 6.0 Kg to 9.25 Kg 71 Range Brown Cap 9.25 Kg to 11.0 Kg 81 Range Red Cap 11.0 Kg to 18.0 Kg 91 Range Blue Cap 18.0 Kg to 22.0 Kg Whitco Spring Sash Window Balances are supplied with black coloured tubes.
Min Sash
Height (mm)Max Sash
Height (mm)Tube
Length (mm)Green End Cap
Up to 6.0 KgGrey End Cap
6.0 Kg to 9.25 KgBrown End Cap
9.25 Kg to 11.0 KgRed End Cap
11.0 Kg to 18.0 KgBlue End Cap
18.0 Kg to 22.0 Kg350 400 245 W630251 400 450 295 W630451 W630461 450 500 345 W630651 W630661 500 550 395 W630851 W630861 W630881 550 600 445 W631051 W631061 W631081 600 650 495 W631251 W631261 W631271 W631281 650 700 545 W631451 W631461 W631471 W631481 W631491 700 750 595 W631651 W631661 W631671 W631681 W631691 750 800 645 W631851 W631861 W631871 W631881 W631891 800 850 695 W632051 W632061 W632071 W632081 W632091 850 900 745 W632251 W632261 W632271 W632281 W632291 900 950 795 W632451 W632461 W632471 W632481 W632491 950 1000 845 W632651 W632661 W632671 W632681 W632691 1000 1050 895 W632861 W632871 W632881 W632891 1050 1100 945 W633061 W633071 W633081 W633091 1100 1150 995 W633261 W633271 W633281 W633291 Item Part number Barcode Weight Range up to 6kg - 350, Black W630251 9311847485709 Weight Range up to 6kg - 400, Black W630451 9311847485716 Weight Range up to 6kg - 450, Black W630651 9310584030227 Weight Range up to 6kg - 500, Black W630851 9310584030265 Weight Range up to 6kg - 550, Black W631051 9310584030302 Weight Range up to 6kg - 600, Black W631251 9310584030333 Weight Range up to 6kg - 650, Black W631451 9310584030388 Weight Range up to 6kg - 700, Black W631651 9310584030425 Weight Range up to 6kg - 750, Black W631851 9310584030470 Weight Range up to 6kg - 800, Black W632051 9311847504929 Weight Range up to 6kg - 900, Black W632451 9310584030593 Weight Range up to 6kg - 950, Black W632651 9310584030654 Weight Range 6 - 9.25kg - 400, Black W630461 9311847485723 Weight Range 6 - 9.25kg - 450, Black W630661 9310584030234 Weight Range 6 - 9.25kg - 500, Black W630861 9310584030272 Weight Range 6 - 9.25kg - 550, Black W631061 9310584030319 Weight Range 6 - 9.25kg - 600, Black W631261 9310584030340 Weight Range 6 - 9.25kg - 650, Black W631461 9310584030395 Weight Range 6 - 9.25kg - 700, Black W631661 9310584030432 Weight Range 6 - 9.25kg - 750, Black W631861 9310584030487 Weight Range 6 - 9.25kg - 800, Black W632061 9310584030524 Weight Range 6 - 9.25kg - 850, Black W632261 9311847504936 Weight Range 6 - 9.25kg - 900, Black W632461 9310584030609 Weight Range 6 - 9.25kg - 950, Black W632661 9310584030661 Weight Range 6 - 9.25kg - 1050, Black W633061 9310584030739 Weight Range 6 - 9.25kg - 1100, Black W633261 9310584030777 Weight Range 9.25 - 11kg - 600, Black W631271 9311847504912 Weight Range 9.25 - 11kg - 625, Black W631371 9310584030371 Weight Range 9.25 - 11kg - 650, Black W631471 9311847486515 Weight Range 9.25 - 11kg - 750, Black W631871 9310584030494 Weight Range 9.25 - 11kg - 800, Black W632071 9310584318554 Weight Range 9.25 - 11kg - 900, Black W632471 9310584030616 Weight Range 9.25 - 11kg - 950, Black W632671 9310584030678 Weight Range 9.25 - 11kg - 1000, Black W632871 9310584030715 Weight Range 9.25 - 11kg - 1050, Black W633071 9310584030746 Weight Range 9.25 - 11kg - 1100, Black W633271 9310584030784 Weight Range 11 - 18kg - 500 Sash Height, Black W630881 9311847992542 Weight Range 11 - 18kg - 550 Sash Height, Black W631081 9311847992559 Weight Range 11 - 18kg - 600 Sash Height, Black W631281 9311847993426 Weight Range 11 - 18kg - 650 Sash Height, Black W631481 9311847992566 Weight Range 11 - 18kg - 700 Sash Height, Black W631681 9311847992573 Weight Range 11 - 18kg - 750 Sash Height, Black W631881 9311847992580 Weight Range 11 - 18kg - 800 Sash Height, Black W632081 9311847992597 Weight Range 11 - 18kg - 850 Sash Height, Black W632281 9311847992603 Weight Range 11 - 18kg - 900 Sash Height, Black W632481 9311847992610 Weight Range 11 - 18kg - 950 Sash Height, Black W632681 9311847992627 Weight Range 11 - 18kg - 1000 Sash Height, Black W632881 9311847993433 Weight Range 11 - 18kg - 1050 Sash Height, Black W633081 9311847992634 Weight Range 11 - 18kg - 1100 Sash Height, Black W633281 9311847992092 Weight Range 18 - 22kg - 650 Sash Height, Black W631491 9311847992641 Weight Range 18 - 22kg - 700 Sash Height, Black W631691 9311847992658 Weight Range 18 - 22kg - 750 Sash Height, Black W631891 9311847992665 Weight Range 18 - 22kg - 800 Sash Height, Black W632091 9311847992672 Weight Range 18 - 22kg - 850 Sash Height, Black W632291 9311847992689 Weight Range 18 - 22kg - 900 Sash Height, Black W632491 9311847992696 Weight Range 18 - 22kg - 950 Sash Height, Black W632691 9311847992702 Weight Range 18 - 22kg - 1000 Sash Height, Black W632891 9311847992719 Weight Range 18 - 22kg - 1050 Sash Height, Black W633091 9311847992726 Weight Range 18 - 22kg - 1100 Sash Height, Black W633291 9311847990241 Spring Sash Balance Unit Accessories - Std Foot Assembly 2.5mm Pads, Black W635100 9310584030791 Spring Sash Balance Unit Accessories - J Foot Assembly, Black W635500 9310584030838 Spring Sash Balance Unit Accessories - W Foot Assembly, Black W635900 9311847504950 Spring Sash Balance Unit Accessories - SBS 500mm Accessory Hook W492800 9311847501010 Spring Sash Balance Unit Accessories - SBS 325mm Accessories Hook W493100 9311847501027 Spring Sash Balance Unit Accessories - Double Hung Window Sash Stop W493217 9311847494657
